A complete guide to the textile spinning mill

Short answer: a textile spinning mill turns loose fibre into yarn. Bales are opened and cleaned in the blow room, the fibres are separated and aligned in carding, drawing and (for finer yarns) combing, drafted into a thin strand and twisted on ring, rotor or air-jet machines, then wound onto packages for weavers and knitters. Profit depends above all on buying and using fibre well, keeping waste and stoppages low, controlling energy and humidity, and matching the machinery to the right count mix.

Spinning is the first step of the textile chain and, for many groups in India, Pakistan and Bangladesh, the foundation of the whole business. It is also a business of fine margins: the same machines can make a good profit in one mill and lose money in another. This guide explains how a spinning mill works, how the main technologies compare, which measures matter, and what to consider when planning a new or expanded mill.

What a spinning mill does

A yarn spinning mill buys fibre and sells yarn. In between, it has to do three things well:

• Clean and open the fibre, removing trash, dust and very short fibres without damaging the good fibre.
• Parallelise and draft the fibres into an even strand of the right thickness (the yarn count).
• Insert twist so the strand holds together with the strength the customer needs, then package it in a form the next process can run efficiently.

Most spinning textile mills work with cotton, man-made fibres such as polyester and viscose, or blends of these. The fibre type, the count range and the end use (weaving or knitting, apparel or home textiles, domestic or export) decide which process route and machines the mill needs.

The spinning mill process, step by step

The classic route is the ring-spinning line. Each step has a specific purpose, and each department must be sized so that it feeds the next without becoming a bottleneck.

Process step	Purpose	Output
Blow room	Open bales, blend fibre from different bales, remove trash and dust	Opened, cleaned tufts fed to the cards
Carding	Separate fibres individually, remove remaining trash, neps and some short fibre	Card sliver
Drawing (draw frame)	Combine several slivers and draft them to improve evenness and fibre alignment; blend fibres in blended yarns	Drawn sliver
Lap forming and combing	Remove short fibres and neps for finer, stronger, smoother combed yarns	Combed sliver
Roving (simplex / speed frame)	Draft sliver into a thinner strand and add a small amount of twist	Roving bobbins for ring spinning

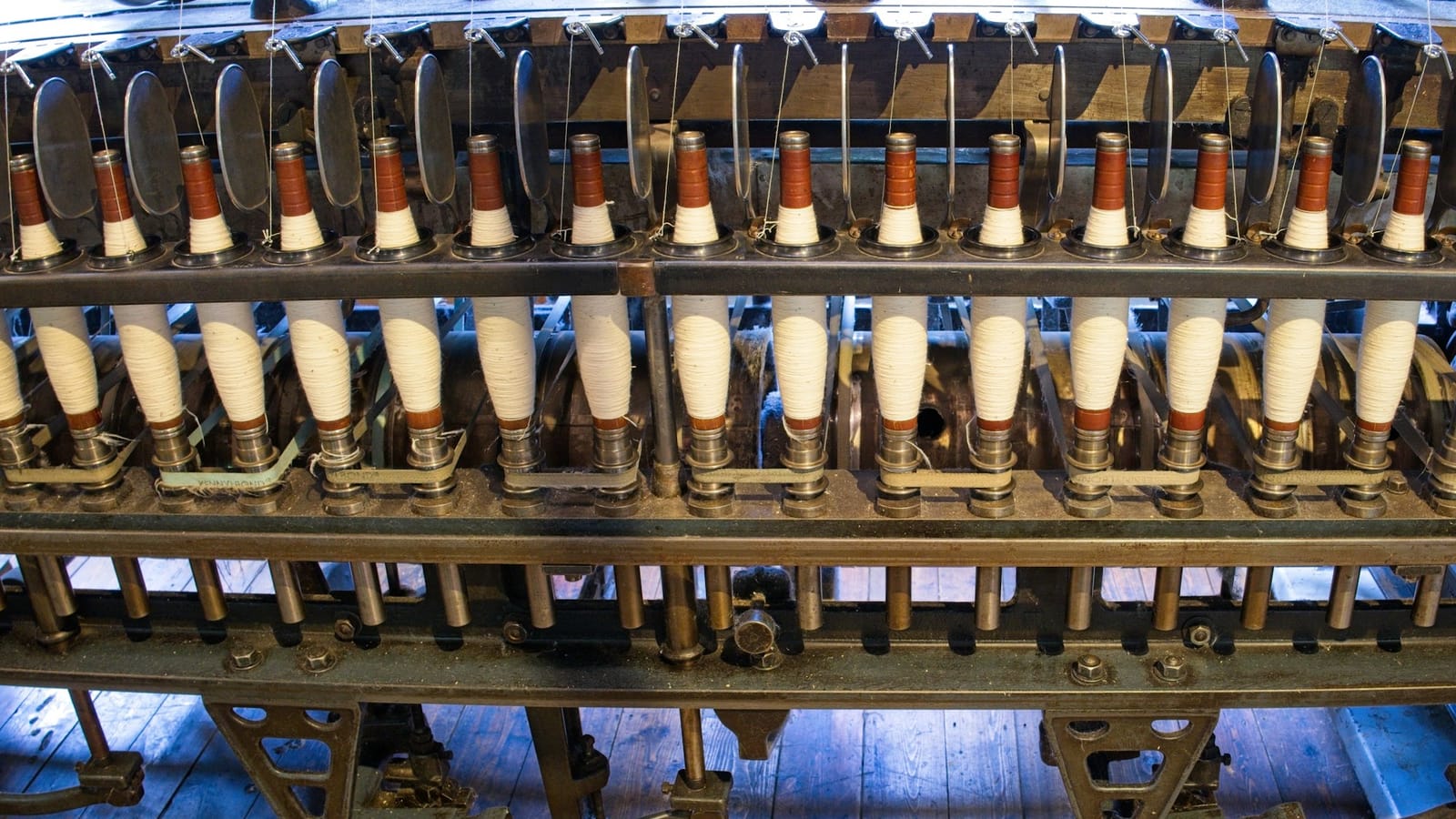

Ring spinning	Draft roving to final count and insert twist	Yarn on ring bobbins (cops)
Compact spinning	Variant of ring spinning that condenses fibres before twisting	Stronger, less hairy yarn
Winding	Join bobbins onto larger packages and clear yarn faults	Cones or cheeses ready for dispatch

Two shorter routes are common alternatives to ring spinning:

• Rotor (open-end) spinning feeds drawn sliver directly to the spinning machine. Roving and separate winding are not needed, because the rotor machine produces a finished package.
• Air-jet spinning also spins directly from drawn sliver, using air to wrap fibres around a core, and delivers packages ready for use.

Depending on the product, a mill may add further steps, such as doubling and twisting for ply yarns, or steaming and conditioning before dispatch.

Carded vs combed yarn

The difference is one process step, but it changes the product and the economics.

• Carded yarn goes straight from carding to drawing. It is the cheaper route and suits coarser and medium counts where a little more hairiness and irregularity is acceptable.
• Combed yarn passes through lap forming and combing, which remove a share of the shorter fibres and neps. The result is a finer, stronger, more even and more lustrous yarn, used for better shirting, fine knitwear and premium products.

Combing adds machines, labour and energy, and the noil it removes is sold at a lower value than the fibre bought. The decision is therefore commercial as much as technical: combed yarn earns a premium, but only if the mill’s customers pay for that quality. Many mills run both, and the right balance should come from the market, not from the machinery already installed.

Ring vs rotor vs air-jet spinning

Aspect	Ring (incl. compact)	Rotor / open-end	Air-jet
Count range	Widest, from coarse to very fine	Mainly coarse to medium	Mainly medium to fine
Productivity per position	Lowest	High	Very high
Process steps	Needs roving and separate winding	No roving, no separate winding	No roving, no separate winding
Yarn character	Strong, versatile, the reference for most fabrics	Bulkier, more regular, lower strength	Low hairiness, distinctive structure, firmer handle
Fibre suitability	Cotton, man-made fibres and blends	Cotton, blends and recycled fibre	Best with man-made fibres, viscose and blends
Flexibility	High; easy to change counts and products	Good within its count range	Narrower range of end uses
Typical use	Woven and knitted apparel, fine and premium yarns	Denim, workwear, towels, home textiles	Knitwear, home textiles, selected woven fabrics

None of these systems is “best”. The right choice depends on the count mix, the fibre, the customer and the cost of labour and energy in the country. Many mills combine systems so they can serve different markets from one preparation department.

Key performance measures

A well-run spinning mill measures a handful of indicators every shift and acts on them every day:

• Machine efficiency and utilisation: the share of time each machine produces. Stoppages from breaks, doffing, maintenance and waiting for material all reduce it.
• Production per spindle or per rotor, converted to a standard count so different products can be compared fairly.
• Yarn realisation and waste: how much saleable yarn the mill gets from each kilo of fibre, and how much of the loss is unavoidable waste (trash, noil) versus avoidable waste (hard waste, rework, rejects).
• Count and quality consistency: count variation, evenness, imperfections, strength and hairiness, measured against customer specifications and over time.
• End breaks in ring spinning, which affect efficiency, labour and quality at the same time.
• Energy per kilo of yarn, by department, because spinning and humidification use most of the power.
• Labour productivity, measured as output per worker or labour cost per kilo.

The point is not to collect numbers but to compare them with a realistic standard for each count and machine type, and to know which department is holding the mill back.

What drives profitability

Raw material is the largest cost. Fibre typically outweighs every other cost item, so buying the right quality at the right time, mixing bales consistently and avoiding over-specification (paying for better fibre than the count needs) have a direct effect on margin.

Waste and realisation. Every kilo of fibre that becomes waste instead of yarn is money lost. Blow room and card settings, comber noil levels, hard waste in spinning and winding, and rejects at the customer all deserve attention.

Efficiency. Stoppages and end breaks reduce output from machines that cost the same whether they run or not. Good maintenance, correct settings, suitable travellers and rings, and well-trained operators and fixers are the main levers.

Energy. Power is one of the largest costs after fibre. Spinning frames, compressors and the humidification plant are the biggest consumers, and modern drives, well-maintained ducts and good control can make a visible difference.

Humidity and climate control. Fibre behaves differently when the air is too dry or too humid. Stable temperature and relative humidity in each department reduce end breaks, static, fly and count variation, and so support both efficiency and quality.

Count mix and selling price. A mill tuned for one count range can lose money when it is pushed into another. Matching the product mix to the machines, and the machines to the market, is a management decision that affects every other measure.

Planning a new or expanded spinning mill

Most of a spinning mill’s lifetime cost is decided before the first bale is opened. A sound plan starts from the market and works back to the machinery:

1. Define the target customers, count range, yarn types and fibre.
2. Build the process flow and a capacity balance for that mix, and test it against alternative mixes.
3. Write performance specifications and compare machinery offers on production, quality, energy and total cost.
4. Design the layout, building, humidification and utilities around the process.
5. Plan organisation, manning and training.
6. Prepare investment and operating costs, returns and a sensitivity analysis.

A feasibility study and new mill plan tests whether the project should be built and in what configuration. Our article on what a spinning mill project report must include sets out the full structure, and what a new textile mill costs explains the factors that decide the investment.

Expansions need the same discipline. Adding spinning capacity without checking preparation, winding, humidification and power often moves the bottleneck rather than removing it.

Small-scale spinning mills

Not every project needs a large integrated mill. A smaller spinning unit can make sense when:

• It serves a specific niche: speciality, fancy, recycled or blended yarns that larger mills do not want to run in small lots.
• It supplies captive demand inside a group, such as an existing weaving or knitting unit.
• Raw material is available locally and the mill can add value close to the source.
• Investment must be phased, starting small and expanding as the market is proven.

The risks are real: fixed costs such as management, quality control, humidification and maintenance are spread over less output, and a small mill has less buying power for fibre and less flexibility when prices move. A small-scale spinning mill should be justified by its market position, not only by a lower entry cost.
