Weaving mills: a guide to processes, looms and performance

Short answer: a weaving mill turns yarn into fabric by preparing a warp, interlacing weft through it on looms, and inspecting the result. Profitability is decided less by the loom badge than by preparation quality, loom efficiency, fixer organisation, article planning and, for air-jet sheds, the cost of compressed air. Choose loom type and width to fit the product mix, then manage the shed by stops, quality and cost per metre.

What a weaving mill does

A textile weaving mill produces woven fabric by interlacing two sets of yarn at right angles: the warp, running along the length of the fabric, and the weft, inserted across it. Most weaving mills sell greige fabric, also called grey or loom-state fabric, which then goes to dyeing, printing and finishing. Some are part of a vertical group with spinning upstream and processing or garments downstream.

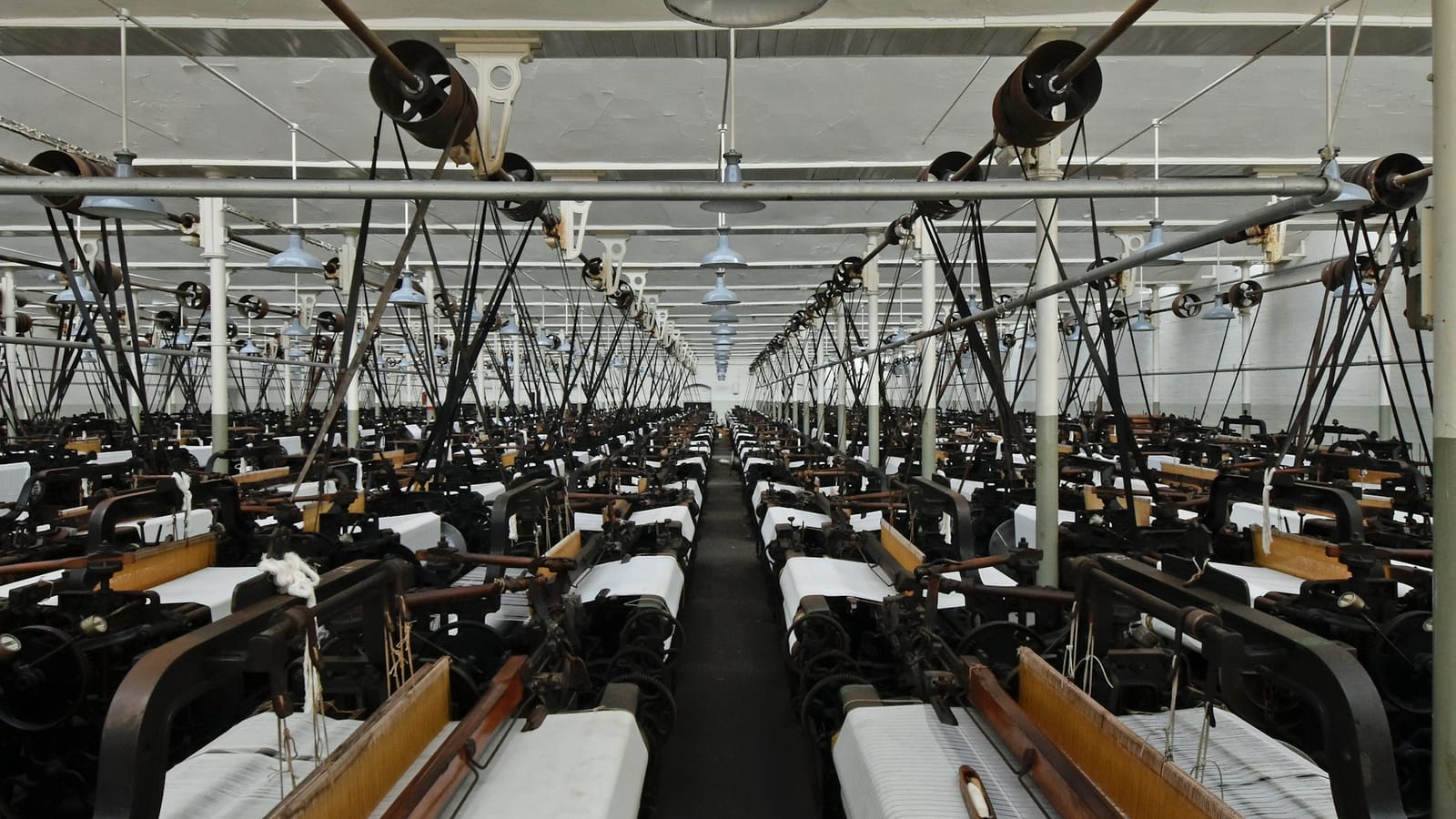

Weaving mills range from sheds of a few dozen looms making one or two standard qualities to large plants running hundreds of looms across shirting, bottom-weight, denim, home textiles, furnishing or technical fabrics. Whatever the size, the same logic applies: the loom can only weave as well as the beam it receives, and the shed only earns money on first-quality metres delivered on time.

The weaving mill process: from yarn to greige fabric

The weaving mill process is a chain. A weakness at any step shows up later as warp breaks, defects or waiting time on the loom.

Step	What happens	Purpose
Yarn store	Yarn is received, checked, conditioned and stored by lot	Consistent, traceable yarn; avoids mixing lots that would show as shade or quality bars
Direct warping	Yarn is wound from a creel onto warper’s beams, all ends side by side	High-volume preparation of beams for sizing in plain or simple warps
Sectional warping	Ends are wound in sections onto a drum, then transferred to the weaver’s beam	Coloured, patterned or short-run warps, and yarns that do not need sizing
Sizing	Warp sheet is coated with size, dried and wound onto the weaver’s beam	Protects the warp against abrasion and tension on the loom; reduces breaks
Drawing-in	Each end is passed through drop wire, heald and reed according to the drawing plan	Sets the weave pattern for a new article or construction
Knotting (tying-in)	New warp ends are knotted to the ends of the finished warp	Fast beam change when the same article continues
Weaving	Weft is inserted through the shed and beaten into the fabric	Produces the fabric to the specified construction
Inspection and grading	Fabric is checked, defects are marked and points are assigned	Grades fabric, feeds back defect causes and protects the customer relationship

Two points are often underestimated. First, sizing is a process in its own right: the recipe, add-on, moisture and drying must match the yarn and article, and a poorly sized beam will cost efficiency on every metre woven. Second, inspection is not only a gate. When defects are recorded by type and loom, inspection becomes the main source of information for fixing problems at their origin.

Weaving loom types compared

Modern weaving loom types are usually classified by how they insert the weft. Each has strengths, and most product mixes favour one or two of them.

Loom type	How weft is inserted	Strengths	Typical uses
Air-jet	Weft carried across by jets of compressed air	High speed and output; well suited to long runs	Sheeting, shirting, bottom-weight, denim, many standard staple and filament fabrics
Rapier	Weft carried by rigid or flexible rapier heads	Versatile; handles many weft colours, fancy and difficult yarns	Fashion fabrics, furnishing, multi-colour and short-run articles, some technical fabrics
Projectile	Weft carried by a small gripper projectile	Robust; suited to wide widths and heavy constructions	Wide and heavy fabrics, industrial and technical textiles
Water-jet	Weft carried by a jet of water	Fast and economical for suitable yarns	Synthetic filament fabrics such as polyester and nylon; not for water-absorbent yarns

Separately from weft insertion, looms differ in how they form the shed:

• Cam (tappet) shedding suits simple weaves such as plain and twill, with few heald frames and low complexity.
• Dobby shedding controls more heald frames and allows small geometric patterns, textured effects and a wider range of constructions.
• Jacquard shedding controls warp ends individually, making large figured designs possible for furnishing, damask, labels and decorative fabrics.

The choice of shedding has as much effect on article range, investment and maintenance skills as the choice of insertion system.

Key performance measures for weaving mills

A few measures, recorded consistently by loom group, article and shift, tell management most of what it needs to know.

• Loom efficiency. The picks actually inserted as a share of what the loom could insert at its set speed. It shows how much of the available running time becomes fabric.
• Stops per 100,000 picks, by cause. Warp stops, weft stops and other stops, normalised so that different speeds and articles can be compared. This is the measure that points to the cause, not just the symptom.
• First-quality percentage. The share of production that passes inspection as first quality. Efficiency gained at the expense of seconds is not a gain.
• Cost per metre. Labour, energy, preparation, maintenance, overheads and depreciation divided by first-quality metres. It is the figure that links the shed to pricing and margin.

Supporting measures include beam-change and article-change time, fixer response time, preparation output and quality, and waste at each step. The point is not to collect every possible number but to use a small set daily to act.

What drives profitability in a weaving mill

Preparation quality. Yarn quality, uniform warping tension, correct sizing and clean beams decide warp break rates. Many efficiency problems blamed on the loom start in preparation.

Loom efficiency. The looms, building and staff cost roughly the same whether the looms run or stand. Every point of efficiency recovered is production at very little extra cost. Our article on how to improve loom efficiency sets out a practical programme.

Fixer organisation. Long stops are often a waiting problem rather than a technical one. Fixer allocation, response times, preventive maintenance and spare parts at the shed make a direct difference to running time.

Article mix and planning. Frequent style changes, short runs and beams that are not ready on time turn into lost production. Grouping similar articles, planning beam lengths and keeping preparation one step ahead of the looms protect output without new investment.

Energy and compressed air. In air-jet weaving, compressed air is a major running cost. Leaks, incorrect nozzle settings, excessive pressure and poorly sized compressors all add to cost per metre. Measuring air consumption by loom and article is one of the most practical savings in an air-jet shed.

Climate. Temperature and humidity affect yarn strength and behaviour. A humidification system that does not hold conditions steady shows up as higher breaks and variable quality.

Planning a new weaving shed or modernisation

Whether you are building a new textile weaving mill or replacing old looms, the decisions follow the same order.

1. Define the product mix. Fabric types, constructions, yarn counts, widths, weave complexity and run lengths come first. They decide everything else.
2. Choose loom type and width. Match insertion and shedding systems to the mix, and choose widths that fit the fabrics you will actually sell, including any multi-width weaving.
3. Balance preparation. Warping, sizing and drawing-in capacity must match the loom shed, with sensible reserve for changes and peaks.
4. Design climate and utilities. Humidification and air conditioning, power and, for air-jet looms, compressed air generation and distribution need to be planned with the layout, not added afterwards.
5. Plan the layout. Material should flow from yarn store through preparation, weaving and inspection without backtracking, with space for beam transport, maintenance and future expansion.
6. Test the economics. Compare investment, running costs and payback for each option on the same basis before committing.

For modernisation, a realistic assessment of the existing building, utilities and preparation is essential: new looms in an old climate and with old preparation rarely deliver their potential. A feasibility study brings these decisions together, and our article on what a new textile mill costs explains the factors that decide the investment.

How Rovetex helps weaving mills

Rovetex has advised textile mills and factories since 1978, and weaving is one of our core areas. Our consultants have managed weaving mills themselves and work on the shop floor with managers, fixers and weavers. Typical assignments include:

• Diagnostic surveys of efficiency, stops, quality and cost per metre.
• Improvement programmes in preparation, loom settings, fixer organisation and planning.
• Compressed air and energy reviews in air-jet sheds.
• Loom selection, layout and feasibility studies for new sheds and modernisation.

Owners and investors in India, Pakistan, Bangladesh, the USA and elsewhere use our weaving mill consulting to get more first-quality metres from the looms they have, and to make sure new investment is planned around the product mix it must serve. A confidential preliminary survey is the usual first step.
